Shared FPD solution
The AeroDR X70 is based on the cassette sized, wireless AeroDR flat panel detector and is designed to suit a variety of X-ray rooms. The AeroDR flat panel detector can be shared between wall stands and bucky tables and can also be used for tabletop and free examinations.
High image quality and lower dose
The optimal combination of the AeroDR detector, using a Konica Minolta CsI scintillator, combined with the newly developed low noise readout circuitry delivers an excellent DQE (Detective Quantum Efficiency). This makes the AeroDR effective in reducing exposure dose.
High patient throughput
The AeroDR X70 system is designed to increase patient throughput. You will experience light and easy handling of the (tilting) wall stand bucky, table and the ceiling suspended X-ray tube, minimizing the positioning time.
Tube tracking
Synchronised movement of the tube and detector is standard. The X-ray tube automatically tracks the detector during wall stand or table bucky adjustments, also when the tube is placed in an angled position.
Wall Stand
No matter how tall your patient is
Examinations of patients of all heights are easy and straightforward to perform due to the long vertical stroke of the wall stand (1470mm＊). The versatile wallstand ensures that a wide variety of patients can be accommodated.
＊center stroke
Unique bucky design
The AeroDR detector can be inserted in the bucky from either the left or the right side (selectable during installation) after which a wired connection will automatically be established. Not only can the detector be rotated to landscape or portrait position, the unique design of the bucky enables positioning of the detector in both top and centre landscape positions, allowing for an even more flexible working environment. The AeroDR X70 ’s multifunctional console CS-7 will automatically recognise the portrait or landscape position of the detector when it’s placed in the bucky.
Examination of extremities
The removable grid and tilting bucky allow the flat panel detector to easily be used for examinations of extremities or less mobile patients.
Table
Accommodates patients of all body types
The maximum weight capacity of the table is 295kg ( 240 lbs. ) and will accommodate a wide variety of patients. The floating table top enables a default coverage of 200 cm without having to move the patient. This flexible table ensures easy positioning and is suitable for all body types.
Built in foot control for easy usage

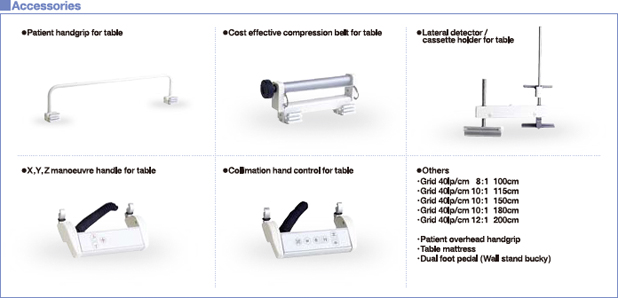

The table bucky has a built in foot controller and can be equipped with an extra hand controller＊ as well as an additional foot controller＊ to provide an optimal working environment.
＊Optional
Multifunctional console CS-7 with intuitive user interface
Our CS-7 work station doesn’ t just control the AeroDR system. It also controls the generator, the collimator and even all current Konica Minolta CR readers. There is no need to use the X-ray console to adjust exposure conditions. When the sub console is installed in the X-ray room, the acquired image can immediately be confirmed.
Panel auto tracking function
You can check the remaining battery level, radio field intensity and panel location through the panel auto tracing function at a glance on the CS-7 screen in real time.
Exam auto focus function
When the order of exposures is changed for wall-stand, table, and cassette radiographies, the radiographic focus is automatically changed according to the movement of the panel.
